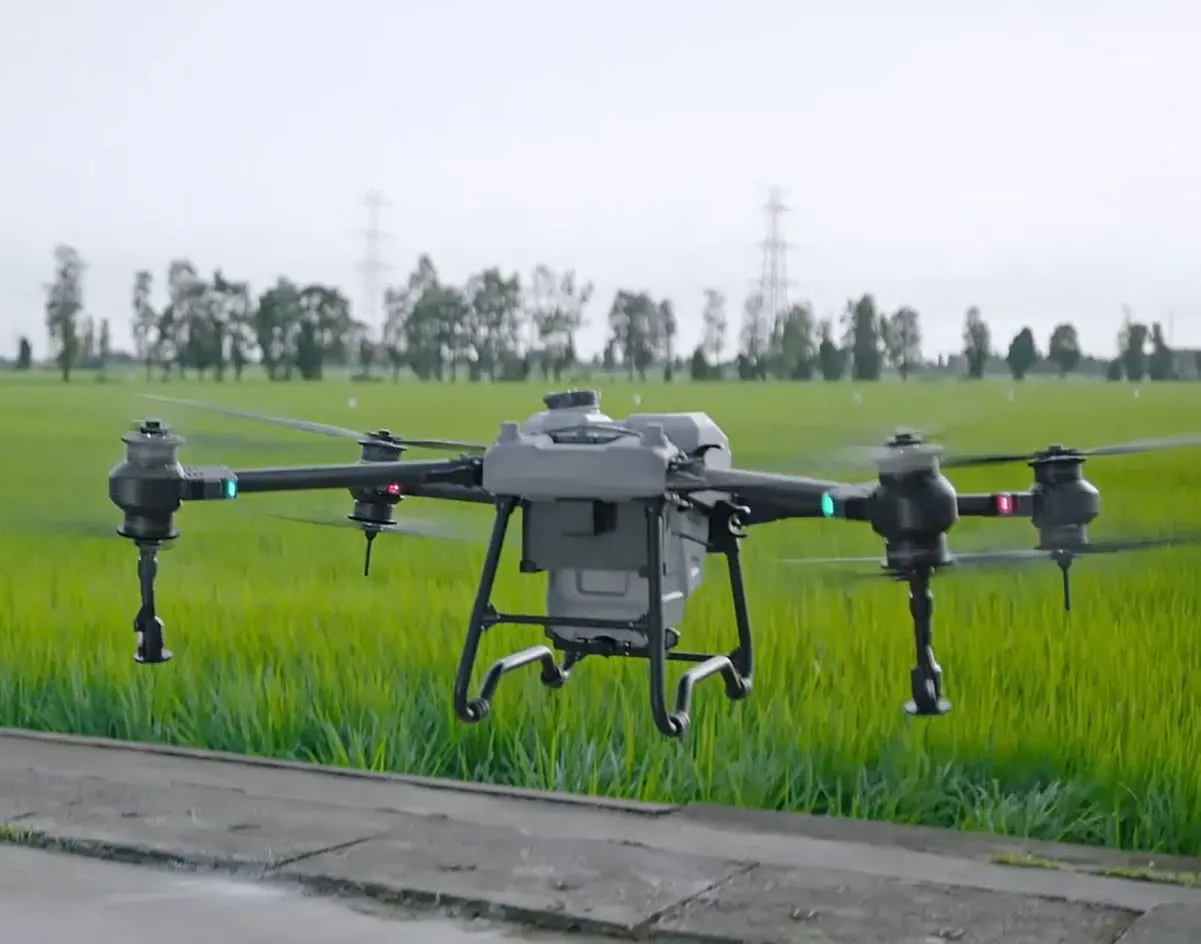

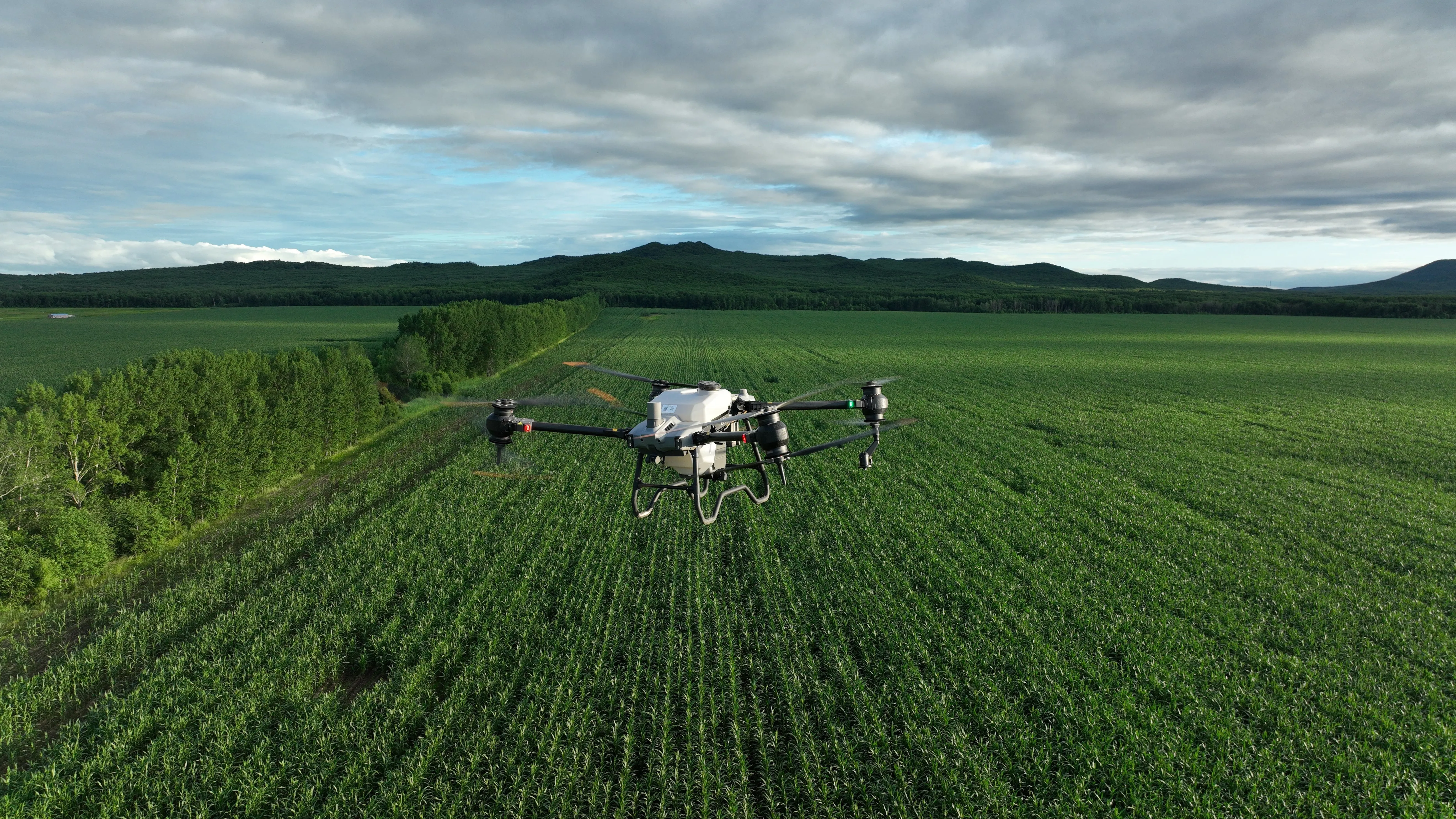

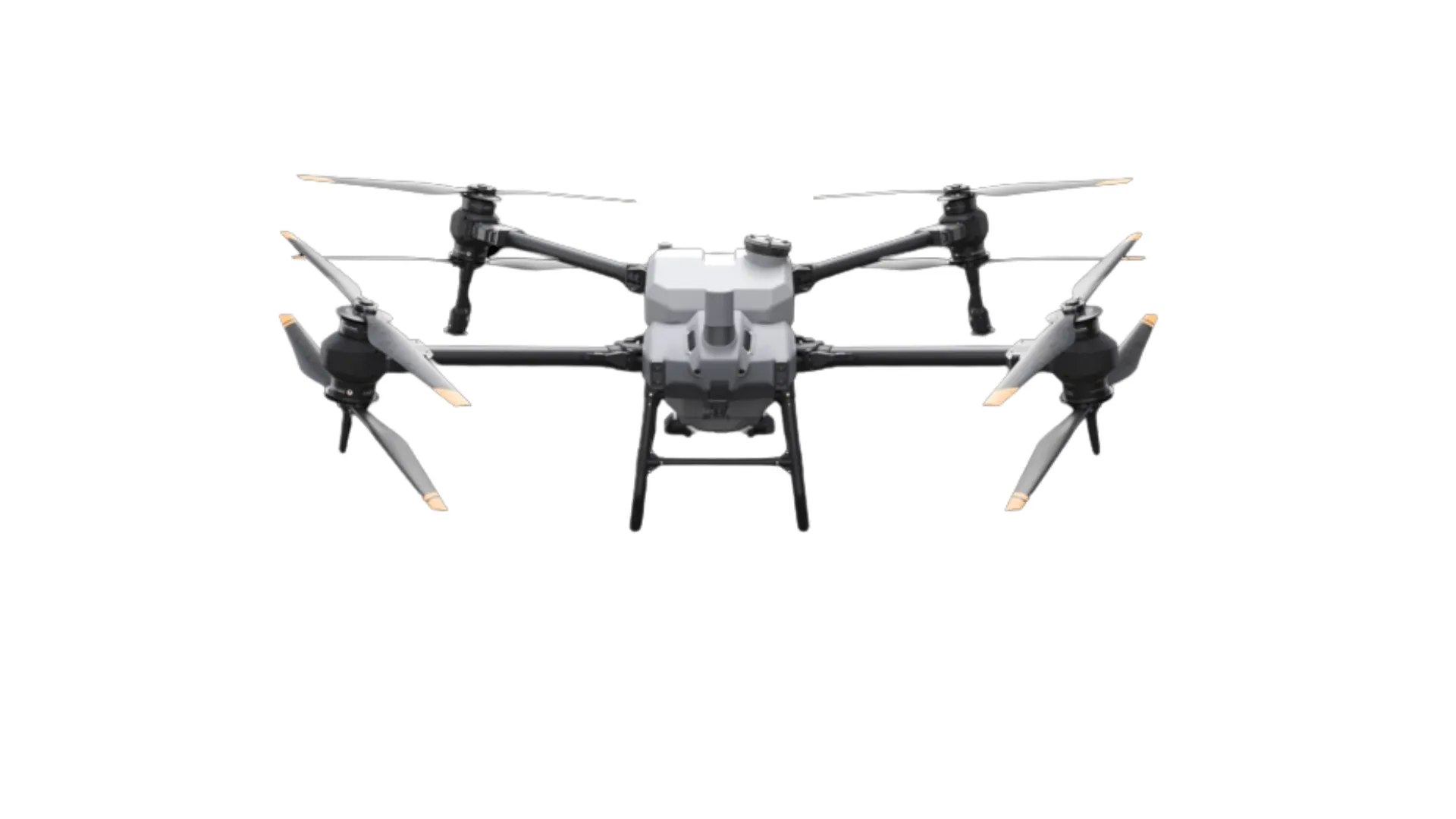

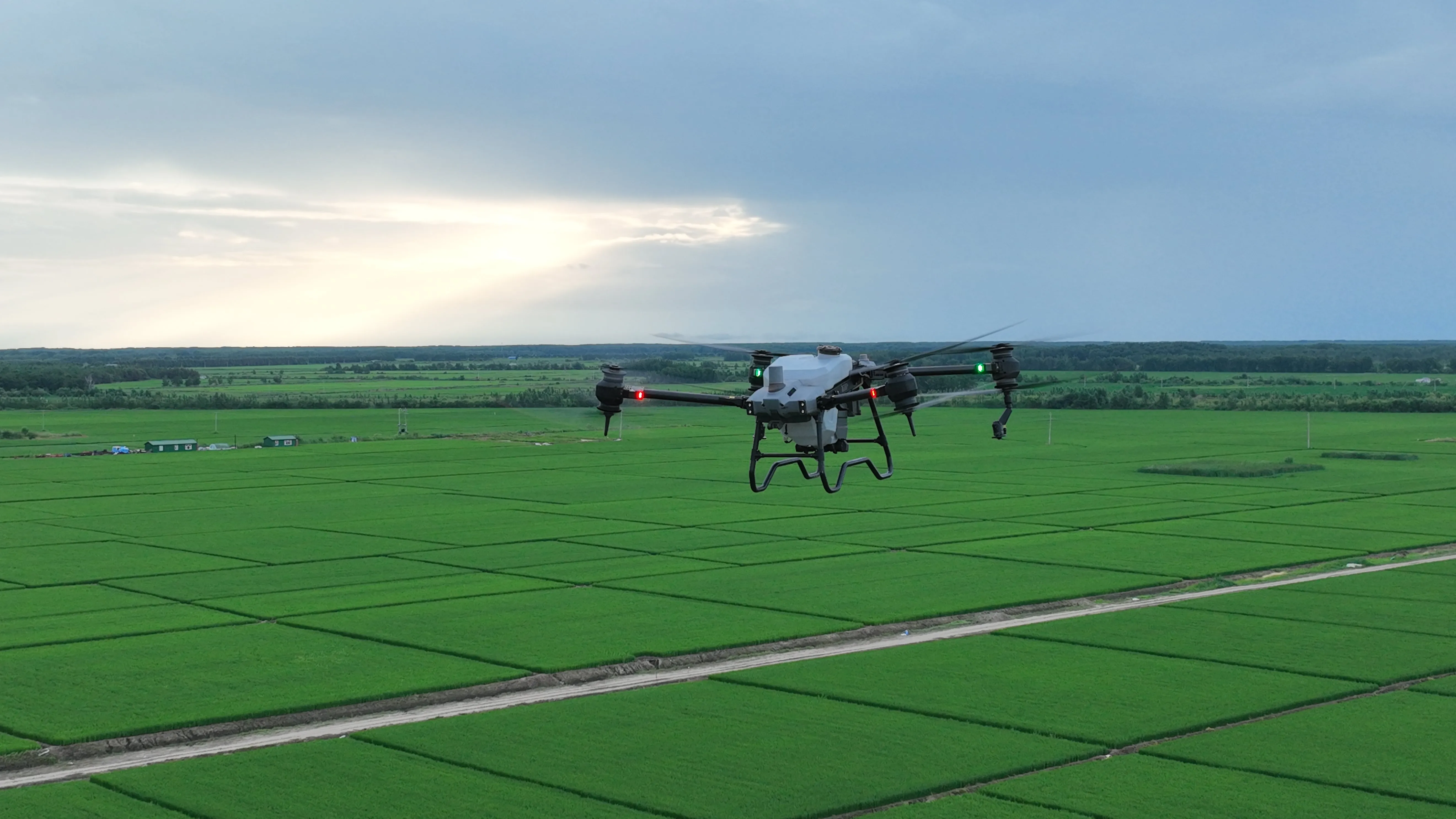

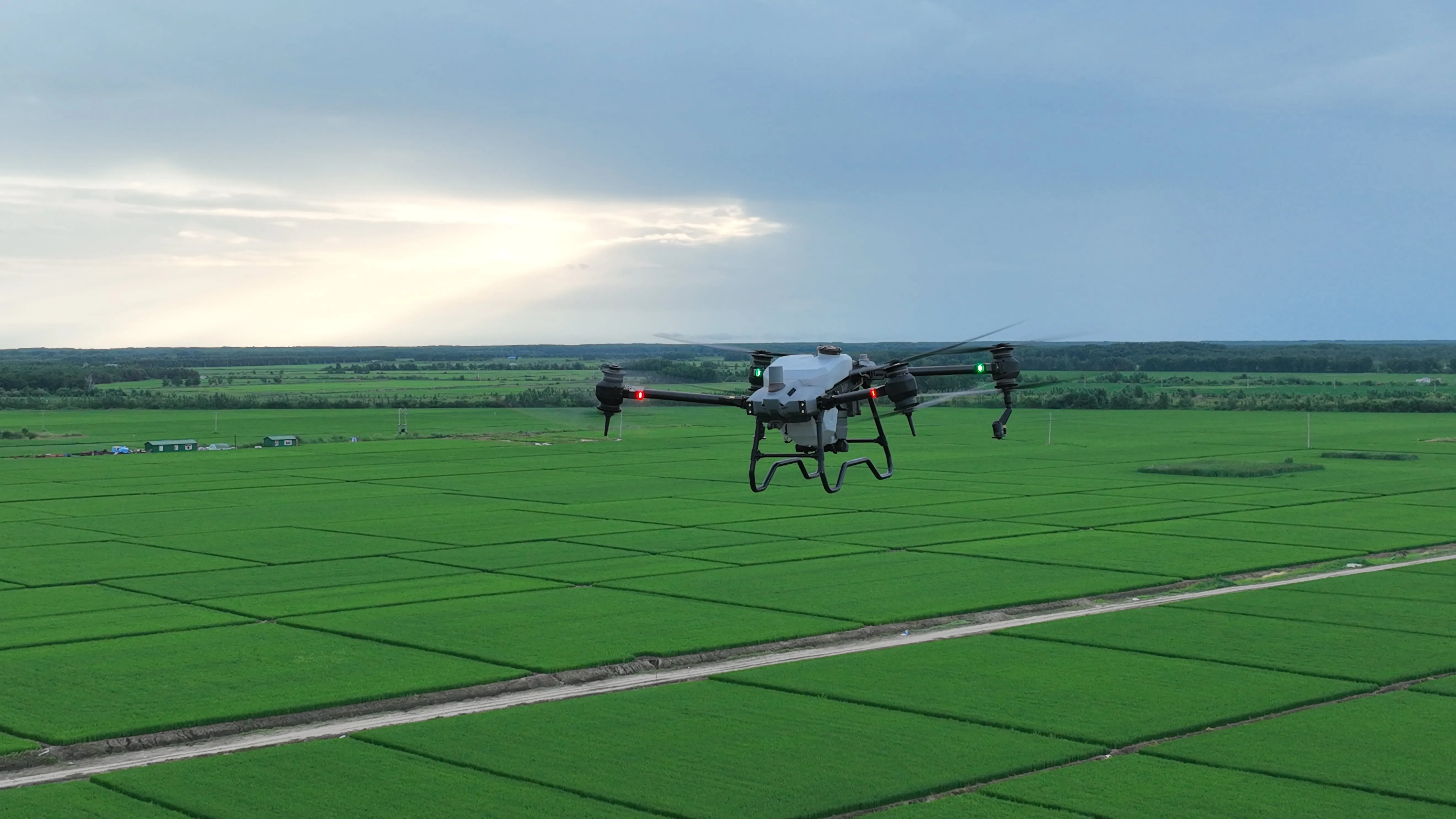

The DJI Agras T40 Spraying, Seeding & Mapping Drone

DJI's Ultimate Agriculture Drone

High Capacity | Awesome Efficiency | Rotary Atomization

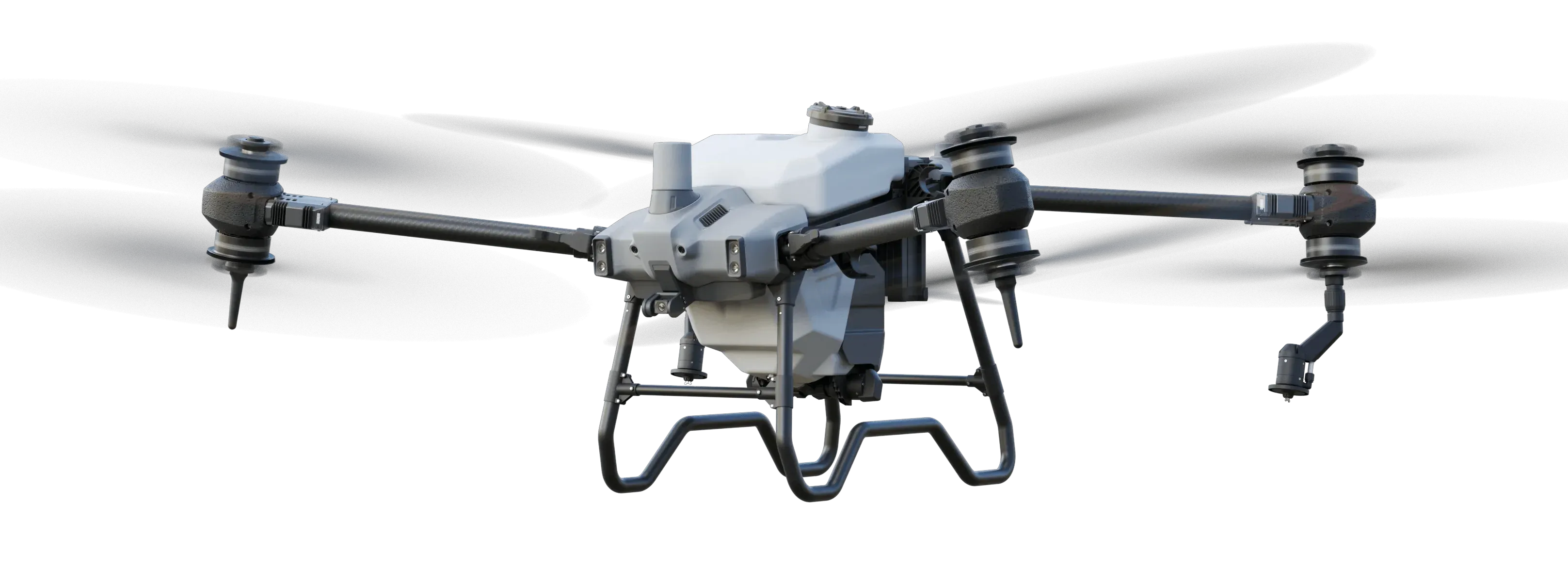

T40 10.6 GAL (40 L) SPRAYING DRONE
Coaxial Twin Rotor = Massive Increase in Payload

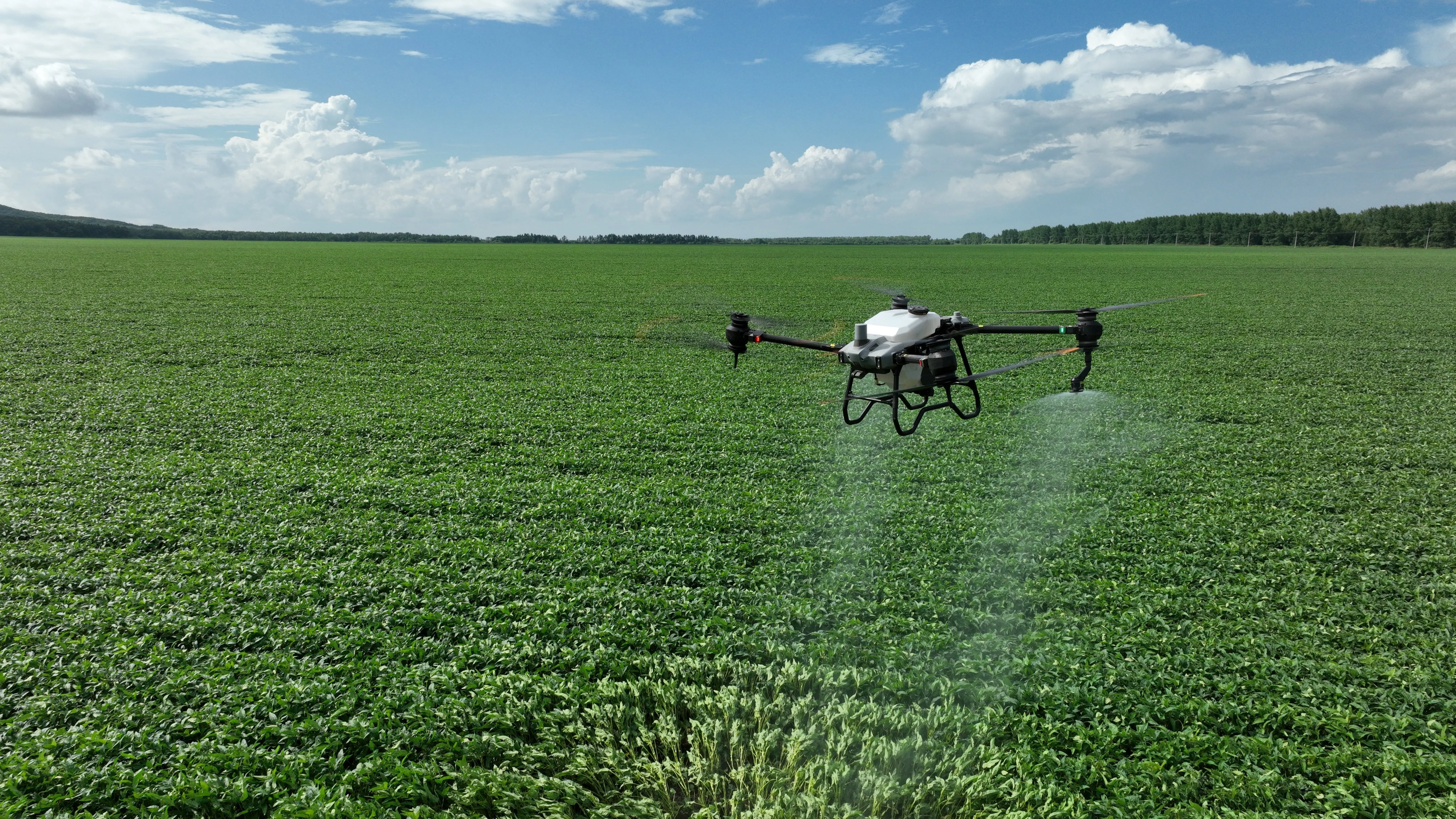

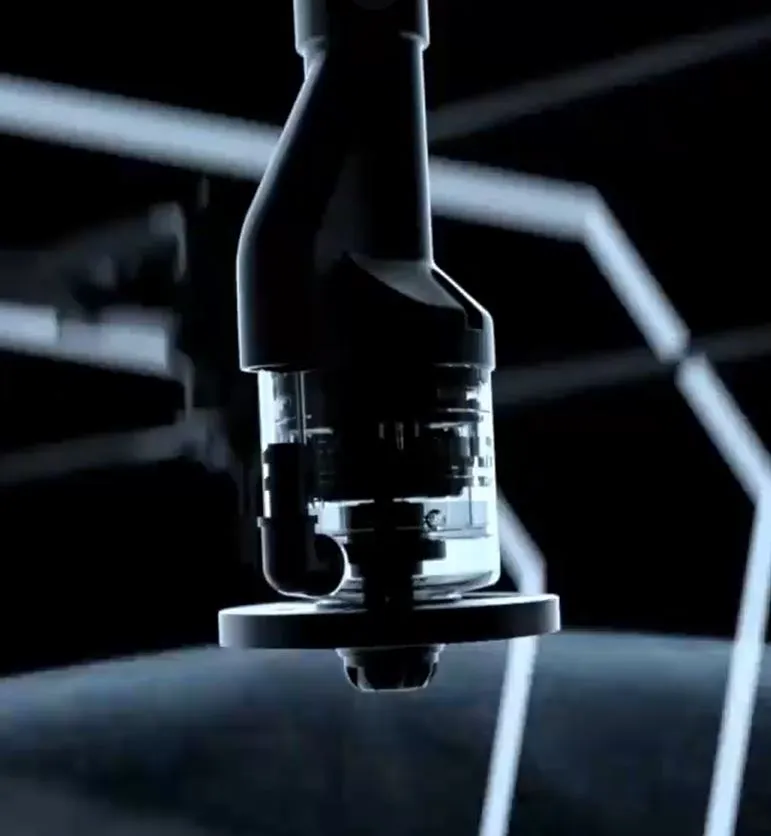

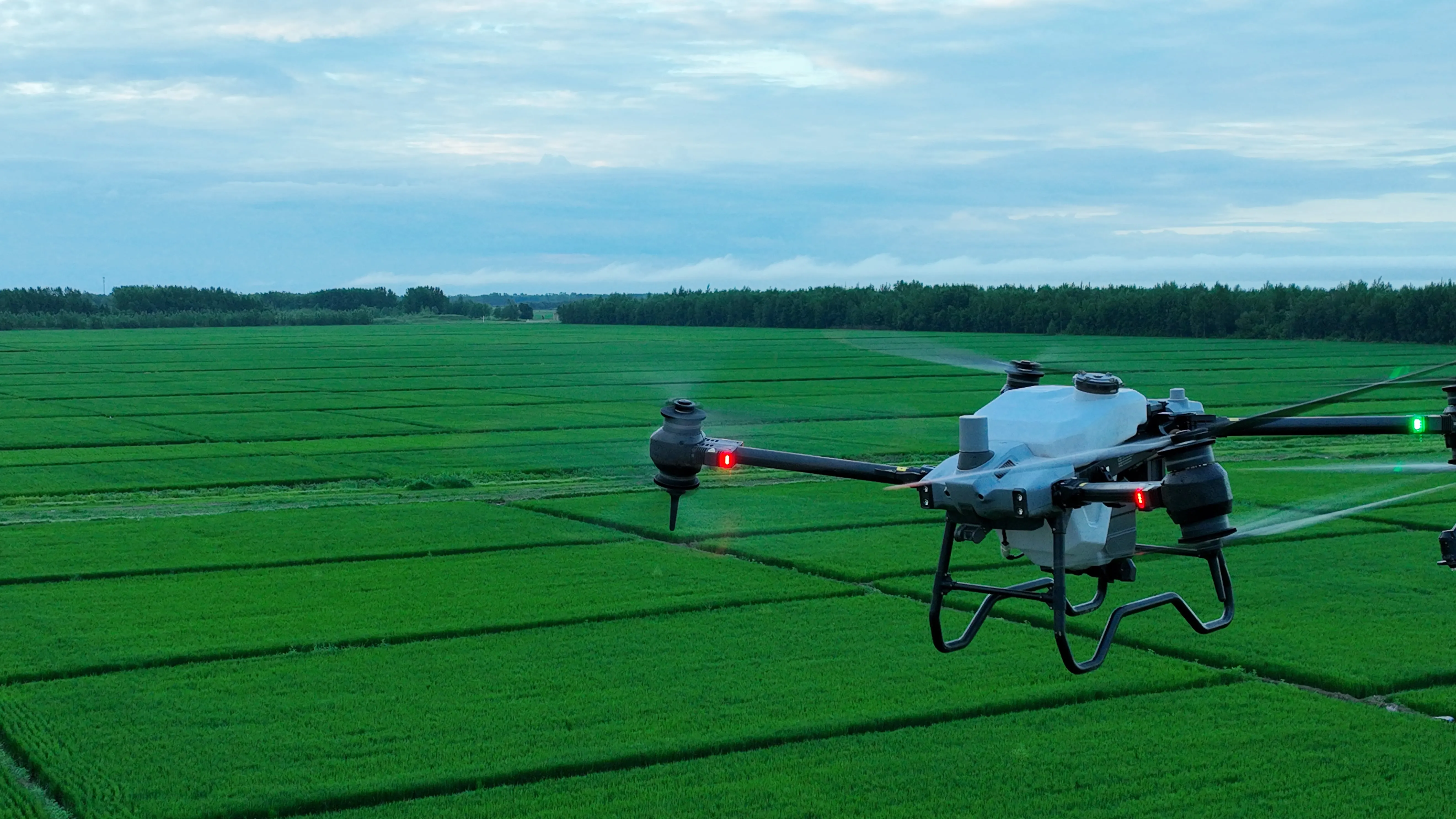

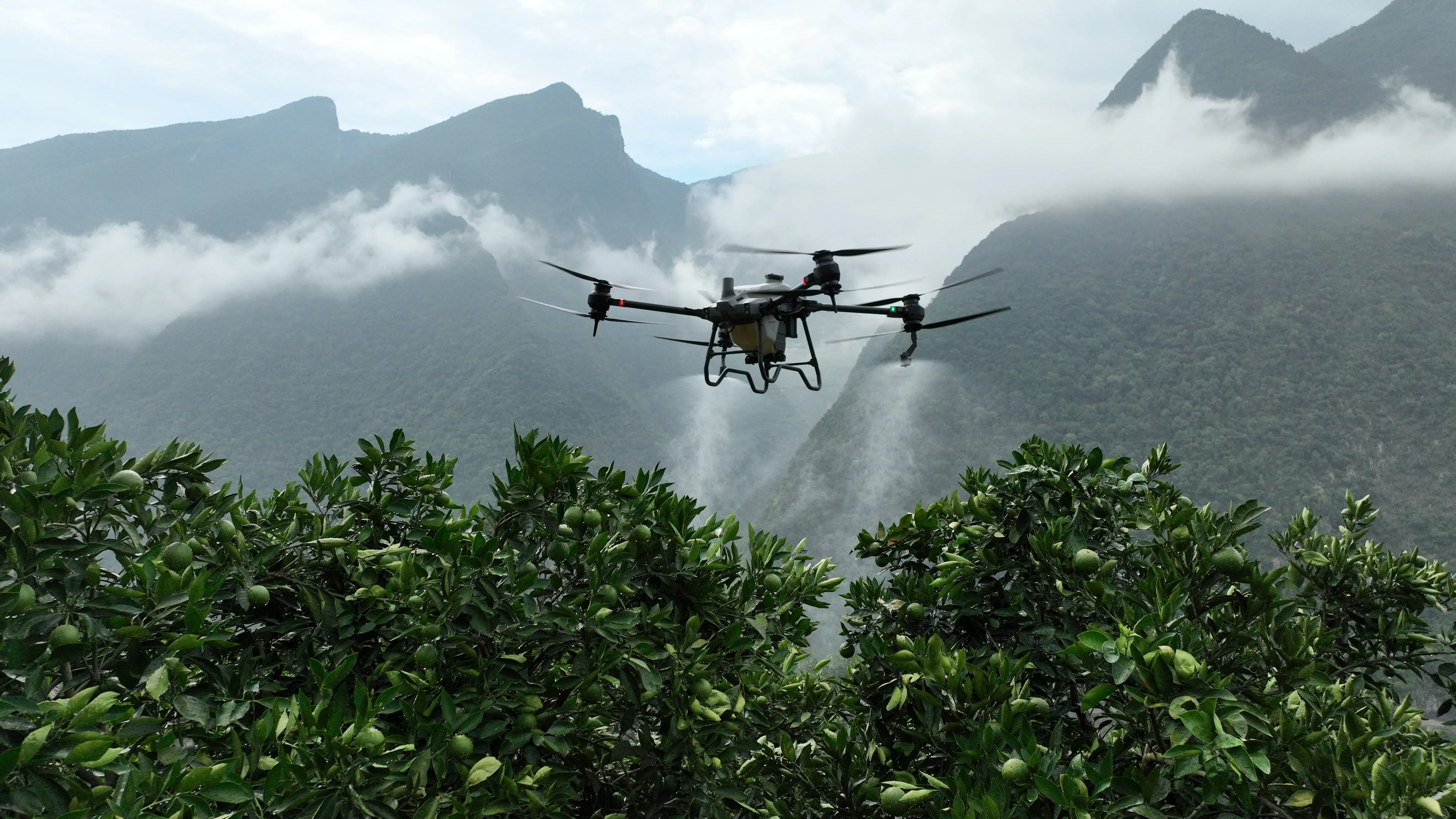

Dual Atomization for Even Spraying
Enhanced Spreading Efficiency for Superior Performance
Omnidirectional Obstacle Sensing

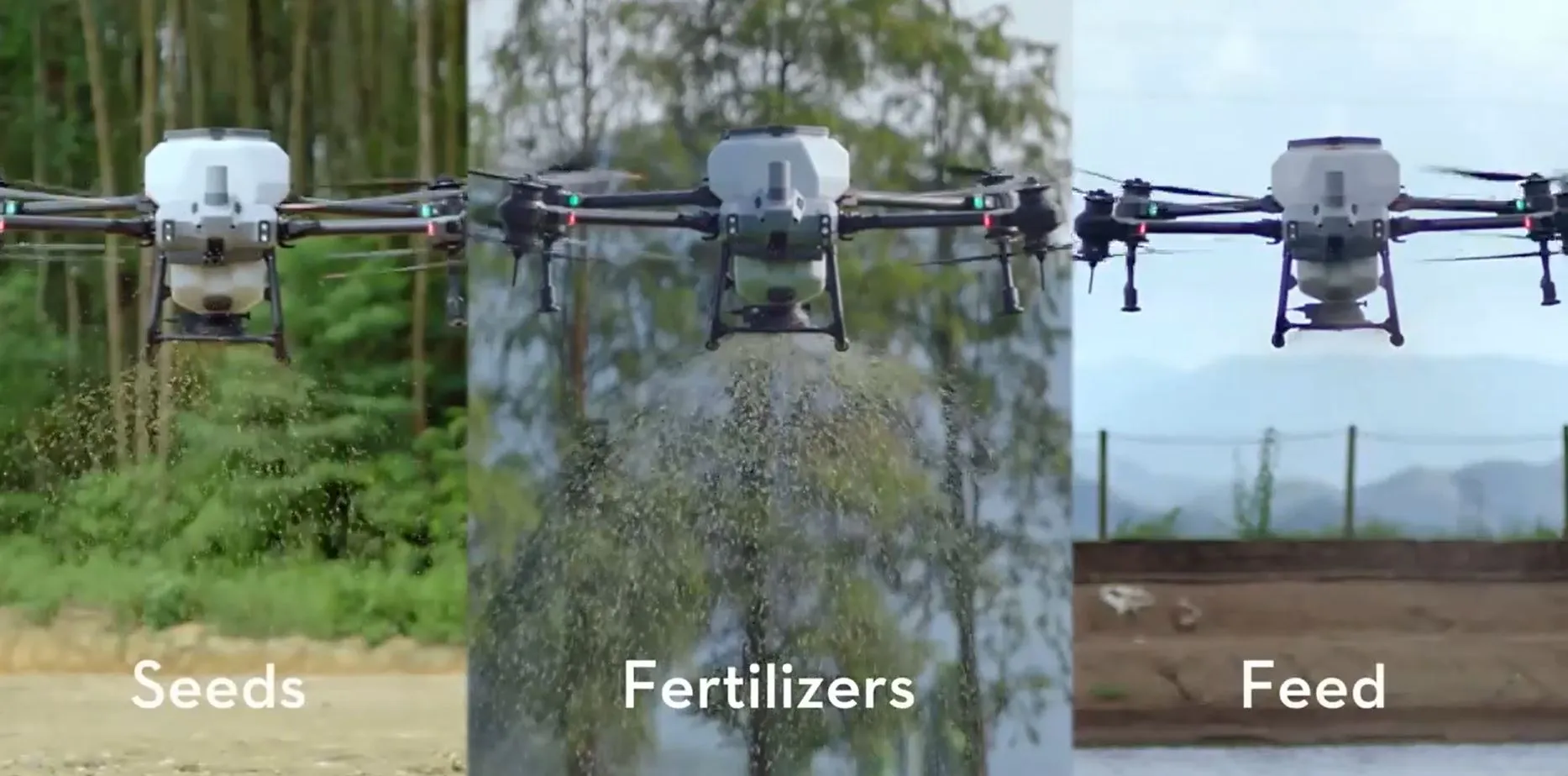

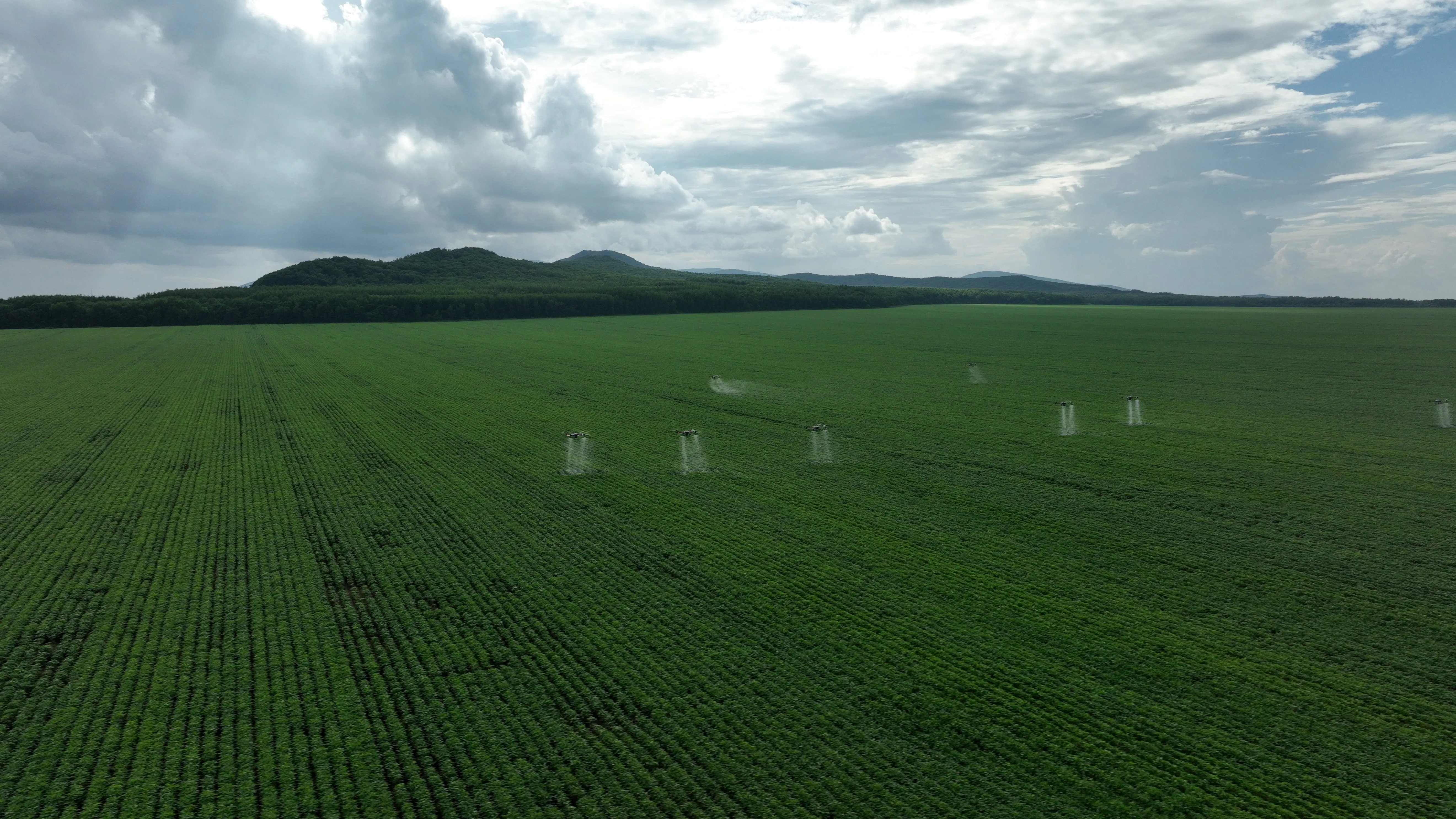

Mapping, Spraying and Spreading ALL in One
Fully Enhance Remote Control for smoother and faster mapping
Robustly Tested for Ultimate Reliability
Ultra Fast Charging
DJI Agras Intelligent Cloud

Want a closer look at the large capacity DJI T40 Sprayer Drone?

Click the "More Info" tab above

More Info

Specifications

Aircraft Parameters
Total weight	83.7 lbs (38 kg) (without battery)
Total weight	110 lbs (50 kg) (with battery)
Max Takeoff Weight	Max takeoff weight for spraying: 198 lbs (90 kg) (at sea level)
Max Takeoff Weight	Maximum takeoff weight for spreading: 222 lbs (101 kg) (at sea level)
Max Diagonal Wheelbase	86 inch (2184 mm)
Dimensions	110 x 124 x 30.7 inch (2800 mm × 3150 mm × 780 mm) (arms & propellers unfolded)
	62.5 x 76 x 30.7 inch (1590 mm × 1930 mm × 780 mm) (arms unfolded, propellers folded)

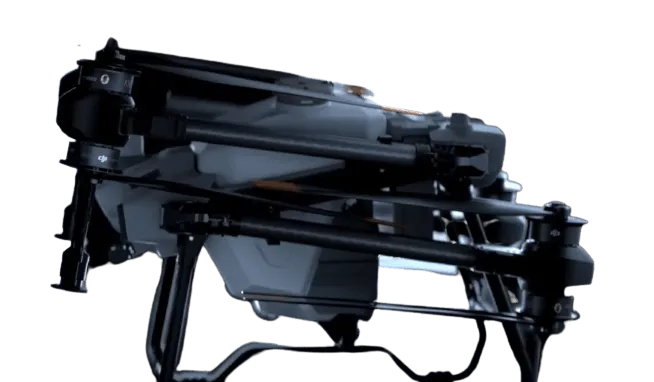

	44 x 29.5 x 33 inch (1125 mm × 750 mm × 850 mm) (arms folded)
Hovering Accuracy Range (with strong GNSS signal)	RTK positioning enabled:
	±10 cm horizontal, ±10 cm vertical
	RTK positioning disabled:
	±60 cm horizontal and ±30 cm vertical (radar enabled: ±10 cm)
RTK/GNSS Operating Frequency	RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, Galileo E1/E5
RTK/GNSS Operating Frequency	GNSS: GPS L1, GLONASS F1, Galileo E1, BeiDou B1
Hovering Time	Hovering without payload: 18 min (@30000 mAh & takeoff weight 110 lbs (50 kg) )
	Hovering and spraying with full payload: 7 min (@30000 mAh & takeoff weight 198 lbs (90 kg) )
	Hovering and speading with full payload: 6 min (@30000 mAh & takeoff weight 222 lbs (101 kg) )
Max flight radius can be set	6,561 ft (2000 m)
Max Wind Resistance	6 m/s
Propulsion System - Motor
Stator Size	4 x 1.2 inch (100×33 mm)
Motor KV Value	48 RPM/V
Motor Power	4000 W/rotor
Propulsion System -Propeller
Diameter	54 inch (1372 mm )
Rotor Quantity	8
Dual Atomized Spraying System - Operation Box
Sprinkler Model	LX8060SZ
Sprinkler Quantity	2
Droplet Size	50-300 μm
Max Effective Spray Width	36 ft (11 m) (relative operating altitude 2.5 m, flight speed 7 m/s)
Dual Atomized Spraying System - Water Pump
Pump Model	Magnetic Drive Impeller Pump
Max Flow Rate	3.16 gal/min (12 L)
T40 Spreading System
Applicable Materials	Solid dry particles with a diameter of 0.5 to 5 mm
Spread Tank Volume	18.4 gal (70 L)
Spread Tank Internal Load	110 lbs (50 kg)
Spread Width of Spreading System	23 ft (7 m)
Recommended Operating Temperature	0°C to 40°C (32°F to 104°F)
Active Phased Array Omnidirectional Radar
Model Number	RD2484R
Terrain Follow	Max incline: 30°
Obstacle Avoidance	Sensible distance (horizontal): 1.5-50 m
	FOV: 360° horizontal, ±45° vertical
	Operating conditions: Flying higher than 1.5 m over the obstacle at a speed not exceeding 7 m/s
	Safe distance: 2.5 m (distance between the propeller tip and obstacle when the aircraft is hovering after braking)
	Sensing direction: horizontal omnidirectional avoidance;
	Sensible distance (above): 1.5-30 m
	FOV: 45°
	Operating conditions: Available during takeoff, landing, and ascending when an obstacle is more than 1.5 m above the aircraft
	Safe distance: 2.5 m (distance between the top of the aircraft and the obstacle when the aircraft is hovering after braking)
	Sensing direction: Upward
Binocular Vision System
Measurable Range	0.4-25 m
Effective Sensing Speed	≤7 m/s
FOV	Horizontal: 90; Vertical: 106°
Work Environment Requirements	Normal lighting with clearly textured surfaces

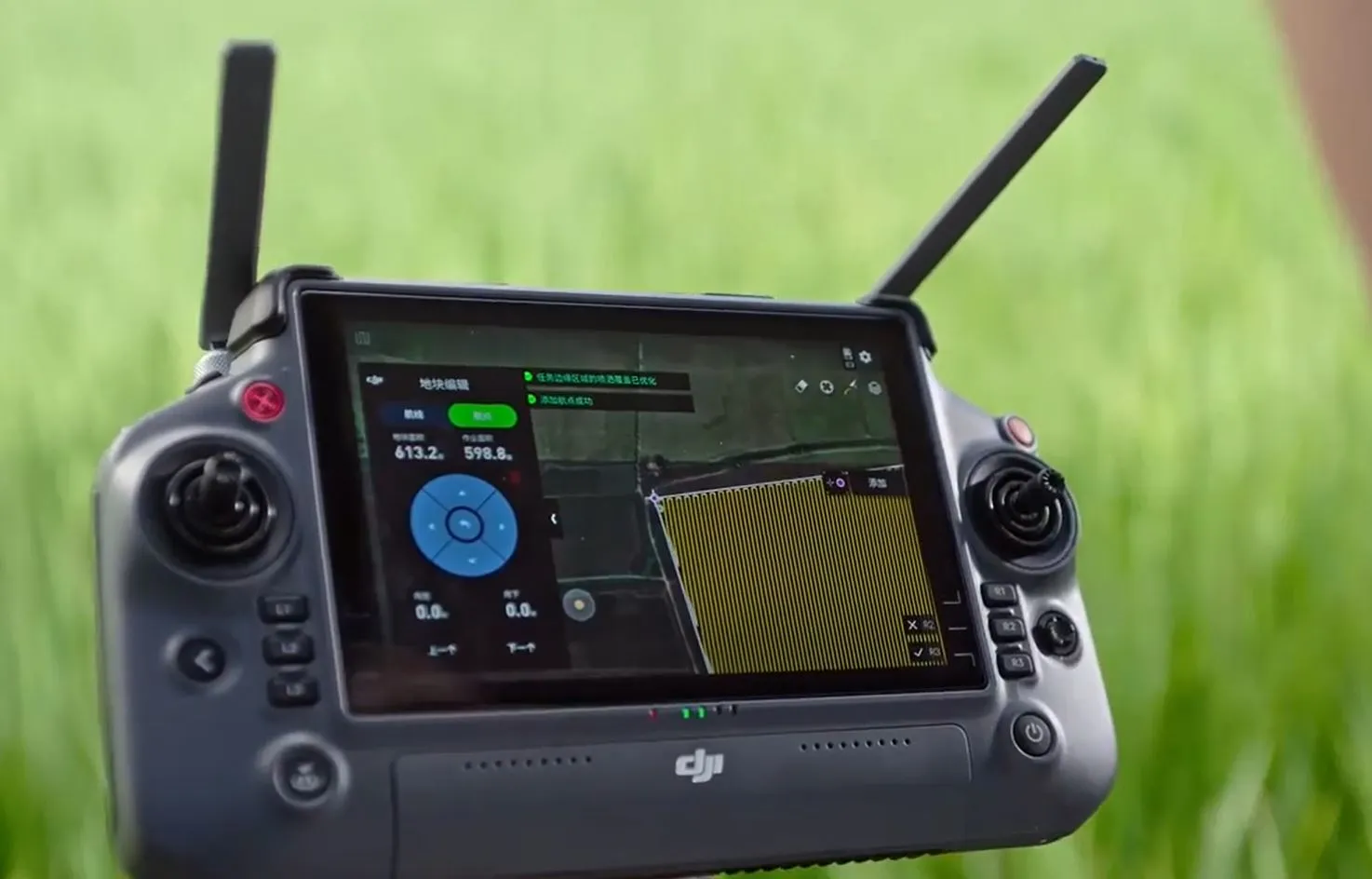

Intelligent Remote Controller
Model	RM700
O3 Pro Operating Frequency	2.4000 to 2.4835 GHz
O3 Pro Operating Frequency	5.725 to 5.850 GHz
O3 Pro Signal Effective Distance	SRRC: 5 km
	MIC/KCC/CE: 4 km
	FCC: 7 km
	(aircraft altitude at 2.5 m in an unobstructed environment with no interference)
Wi-Fi Protocol	WIFI 6
Wi-Fi Operating Frequency	2.4000 to 2.4835 GHz
	5.150 to 5.250 GHz
	5.725 to 5.850 GHz
Bluetooth Protocol	Bluetooth 5.1
Bluetooth Operating Frequency	2.4000-2.4835 GHz
Location	GPS Galileo BeiDou
Display Screens	7.02-inch touch LCD with 1920*1200 resolution and 1200cd/m brightness
Supported Aircraft	AGRAS T40, AGRAS T20P
Operating temperature	-20°C to 50°C (-4°F to 122°F)
Storage Temperature Range	-30°C to 45°C (within one month)
	-30°C to 35°C (between one month and three months)
	-30°C to 30°C (between three months and one year)
Charging Temperature	5° to 40°C (41° to 104°F)
Internal Battery Life	3.3 hours
External Battery Life	2.7 hours
Charging Type	Use a USB-C charger with a maximum rated power and voltage of 65 W and 20 V. The DJI Portable Charger is recommended.
Charging Time	Two hours for both internal and internal plus external batteries (to use the official charging method when the aircraft is off)
T40 Intelligent Flight Battery
Model	BAX601-30000mAh-52.22V
Weight	Approx. 26.4 kbs (12 kg)
Capacity	30000 mAh
Voltage	52.22 V
D12000iE Multifunctional Inverter Generator
Output Channel	1. DC charging output 42-59.92V/9000W
	2.Power supply for air-cooled heat sink 12 V/6 A
	3.AC output 230V/1500W or 120V/750W
Battery Charging Time	To fully charge one battery (T40 battery) takes 9-12 mins
Fuel Tank Capacity	8 gal (30 L)
Starting Method	Starting the Generator via the One-Button Start Switch
Max Power of Engine	12000 W
Fuel Type	Unleaded gasoline with RON ≥91 (AKI ≥87) and alcohol content less than 10%
Fuel Type	(*Brazil: unleaded gasoline with RON ≥ 91 and alcohol content of 27%)
Reference Fuel Consumption	500 ml/kWh
Engine Oil Model	SJ 10W-40
